Product Description:

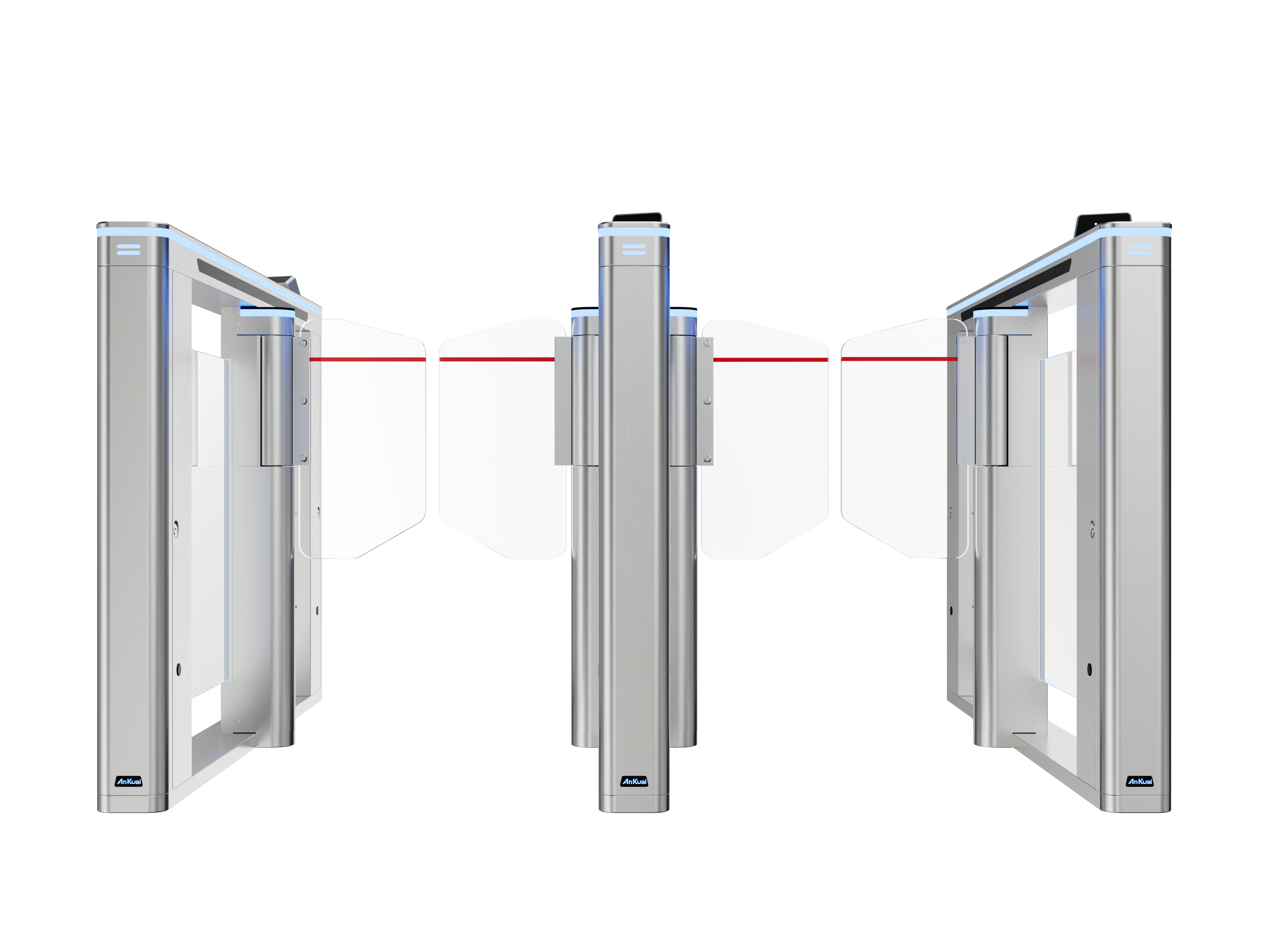

Product Overview: Speed Gate Turnstile
The Speed Gate Turnstile is a state-of-the-art computerized speed
gate designed to provide efficient and secure access control for
high-traffic areas. This product is perfect for use in airports,
train stations, office buildings, and other public facilities.
Alarm Output for Enhanced Security
The Speed Gate Turnstile is equipped with a 1-channel alarm output
and a built-in buzzer alarm. This feature ensures that any
unauthorized attempts to pass through the gate will trigger an
alarm, alerting security personnel and deterring potential
intruders.
Powerful Brushless DC Motor
The driving motor of the Speed Gate Turnstile is a brushless DC
motor, operating at a voltage of 24V and a power of 50W. With a
speed of 50K3000 RPM, this motor provides smooth and efficient
operation, ensuring that the turnstile can handle a high volume of
traffic without any issues.
Strong and Durable Cabinet Material
The cabinet of the Speed Gate Turnstile is made of SUS304 stainless
steel, known for its strength and corrosion resistance. The full
thickness cover is 1.5mm, while the chassis is 1.2mm thick, making
the turnstile sturdy and able to withstand heavy usage.
Efficient and Fast Opening Time
The Speed Gate Turnstile boasts an impressive opening time of just
0.5 seconds, making it one of the fastest gates in the market. This
quick response time ensures smooth and seamless entry for
authorized users, reducing waiting time and increasing overall
efficiency.
Overall, the Speed Gate Turnstile is a top-of-the-line product that
combines advanced technology, high security, and durability. With
features such as alarm output, brushless DC motor, and SUS304
stainless steel construction, this turnstile is the ideal choice
for any facility looking to enhance their access control system.
Features:
- Product Name: Speed Gate Turnstile
- Size: 1500*120*990mm (L*W*H)
- Encoder: Incremental Quadrature ABZ Three-Phase Encoder
- Working current: 5A (10A Max)
- Hardware protection: Overcurrent Protection/Short Circuit Protection/Reverse Connection
Protection
- Input interface: 2-way Opening Signal, No.1 Fire Signal
Technical Parameters:
| Automatic Speed Gate | Speed Gate Turnstile |
|---|
| Driving Motor | Brushless DC Motor DC 24V 50 W/50K3000 RPM |
|---|
| Encoder | Incremental Quadrature ABZ Three-Phase Encoder |
|---|
| Opening Time | 0.5S |
|---|
| Size | 1500*120*990mm (L*W*H) |
|---|
| Number of infrared | 8 Pairs Of Infrared Inputs |
|---|
| Input interface | 2-way Opening Signal, No.1 Fire Signal |
|---|
| Passage Speed | 40-60 Persons/min |
|---|
| Emergency Measures | Power-off Free Travel |
|---|
| Working current | 5A (10A Max) |
|---|
| Communication interface | TTL232 |
|---|
Applications:
Speed Gate Turnstile - Enhancing Security and Efficiency
Brand Name: ankuai
Model Number: AKT327
Place of Origin: China
Certification: iso
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: high quality wooden / carton box
Delivery Time: 3-5 working days
Payment Terms:L/C, T/T,Western Union, PayPal
Supply Ability: 1000 set per days
Cabinet Material: SUS304 Stainless Steel (full Thickness Cover
1.5MM+ Chassis 1.2MM)
Hardware Protection: Overcurrent Protection/Short Circuit
Protection/Reverse Connection Protection
Working Current: 5A(10 A Max)
Passage Speed: 40-60 Persons/min
Input Interface: 2-way Opening Signal, No.1 Fire Signal
Customization:
Customized Service for Speed Gate Turnstile
